Tallguide ® TG16
Ultra Low Loss Waveguide
Frequency 75 to 110 Ghz

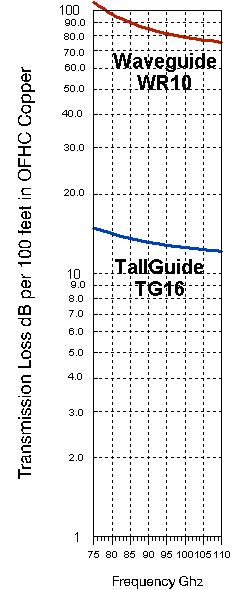

Tallguide TG16 Replaces WR10 Waveguide

	Transition 181-1385-x WR10 to TG16
		Loss = 0.18 dB L =4.0 inches -1 WR10 Flat Cover Flange. -2 Gasket Grooved Flange.
	Mode Suppressor 181-1386
		Loss = 0.20 dB L =4.0 inches
	90-Degree Twist 181-1387
		Loss = 0.07 dB L = 5.0 inches
	90-Degree H-Plane Bend 181-1388
		Loss = 0.07 dB L = 1.65 inches
	Straight Section 181-1389-xxx
		Loss = Length Loss dB + 0.01 dB per flange L = (For total loss, L is multiple section length. When ordering parts, xxx is each section length in units of inches. Max. section length is 144 inch.)
For other Tallguide frequency bands and component information, visit the Tallguide data sheets below. 5.8 - 8.2 Ghz 7 - 10 Ghz 8.2 - 12.4 Ghz 10 - 15 Ghz 12 - 20 Ghz 15 - 22 Ghz 17 - 27 Ghz 22 - 33 Ghz 26 - 40 Ghz 33 - 55 Ghz 50 - 75 Ghz 60 - 90 Ghz 75 - 110 Ghz WR137 WR112 WR90 WR75 WR62 WR51 WR42 WR34 WR28 WR22 WR15 WR12 WR10 TG215 TG170 TG134 TG115 TG87 TG80 TG62 TG50 TG40 TG31 TG23 TG17 TG16 Tallguide Data Sheet Tallguide Design Rules How to Combat Uplink Power Loss
